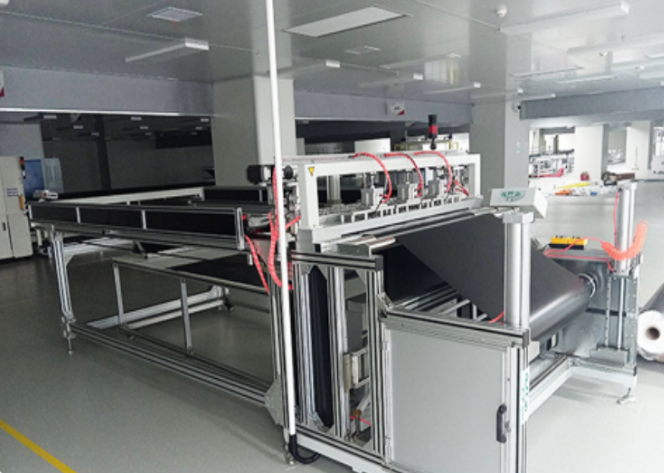

This machine is built for cutting EVA and backsheet into desired lengths for PV industry application.

1、High-precision cutting: save raw materials, reduce the amount of cutting edge components

2、Can be used to cut large roll diameter with outer diameter f700mm.

3、Cut the EVA (or backplane) and lay it on the receiving platform

4、Adopt exclusive special precision alloy steel cutting blade.

5、High precision intelligent fuzzy control technology ensures high precision and reliability of the system.

6、Full servo drive, high degree of automation, scientific and reasonable man-machine interface, touch screen control, easy to operate,

Main Machine Data：

1、Max cutting length：2700 ㎜

2、Max raw material roll width：550～1500 ㎜

3、Max roll OD：500 ㎜

4、Cutting speed：2～8 张/分(2-8 pcs/min，Depending on cutting length and material quality)

5、可选装背板自动冲孔机构Optional backplane automatic punching mechanism

6、Machine size(this is by design, the actual machine size may differ slightly with the design size)：主机Main machine: 4830*2030*160mm；Cut sheet platform: 2510*1310*710mm

7、Power； 380V 1.5KW(3 phase 380V 1.5kw)

8、compressed air：0.5～0.8Mpa，rate of flow：0.15m3/min

9、estimated machine weight：about 500kgs
