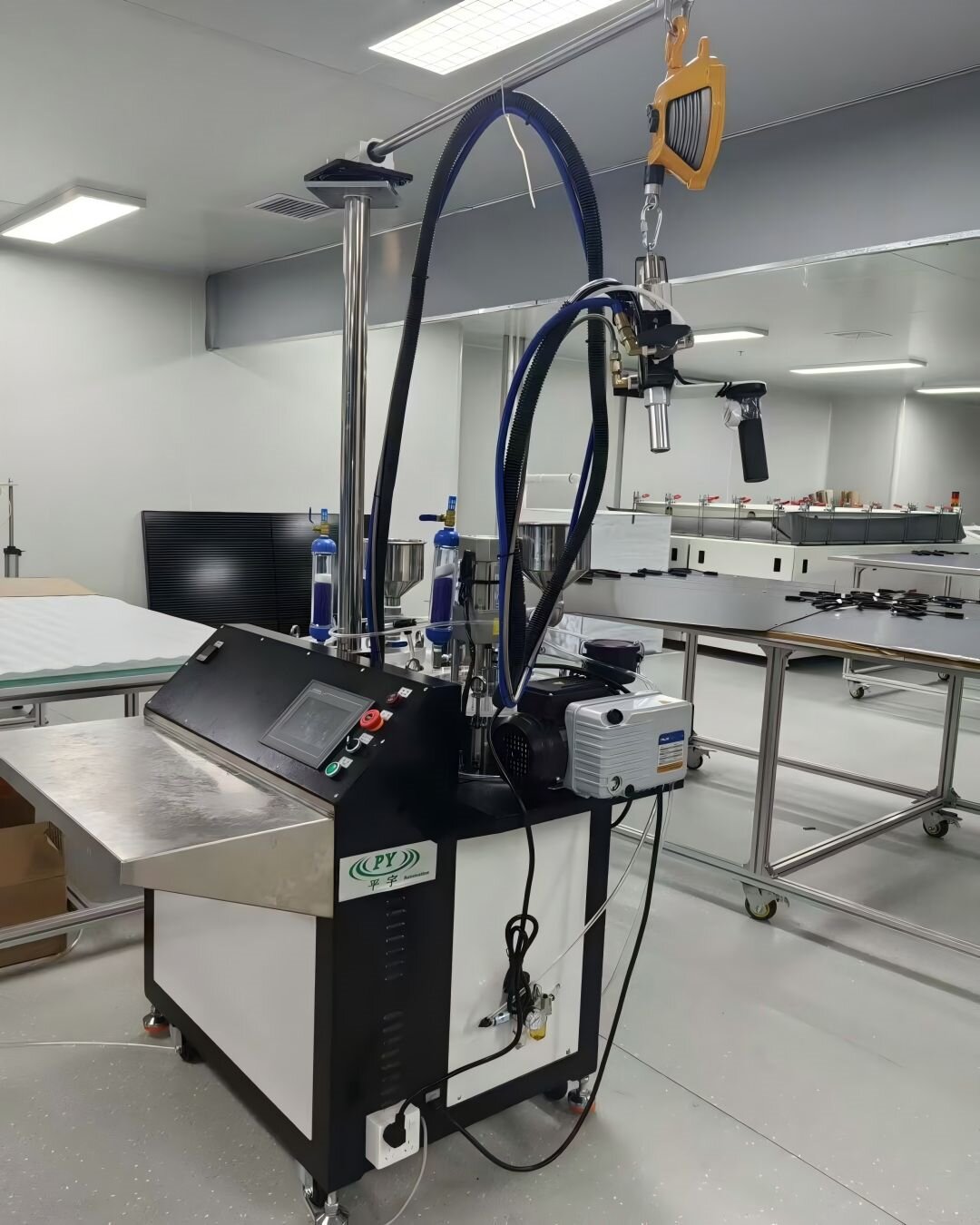

Product description

The ratio and glue amount can be adjusted at will, no programming is required, and the glue amount can be set.

2, glue spitting speed, time can be set parameters, the amount of glue is stable, no leakage of glue.

3. Double barrel design, A glue and B glue are stored separately to ensure that the glue is placed for a long time without curing.

4, AB barrel is stainless steel material, suitable for different glue and different kinds of perfusion process.

5, can be manually operated, can also be equipped with automatic control line

Technical parameters:

Power supply demand voltage: single-phase 220V±10%; Frequency: 50/60Hz; Rated power: 2Kw

Air supply requirement >0.5MPA >150L/min

Use environment Use place: indoor normal ambient temperature: +10 ℃ -+ 30℃ (indoor storage)

Humidity: Less than 85%RH (no dew)

Maximum air input pressure 100psi(7bar, 0.7mpa)

Maximum fluid working pressure 300psi (20bar, 2mpa)

The maximum number of cycles is unlimited

The maximum distance of the glue gun is about 3.5 meters

Equipment size 800*950*1850MM
