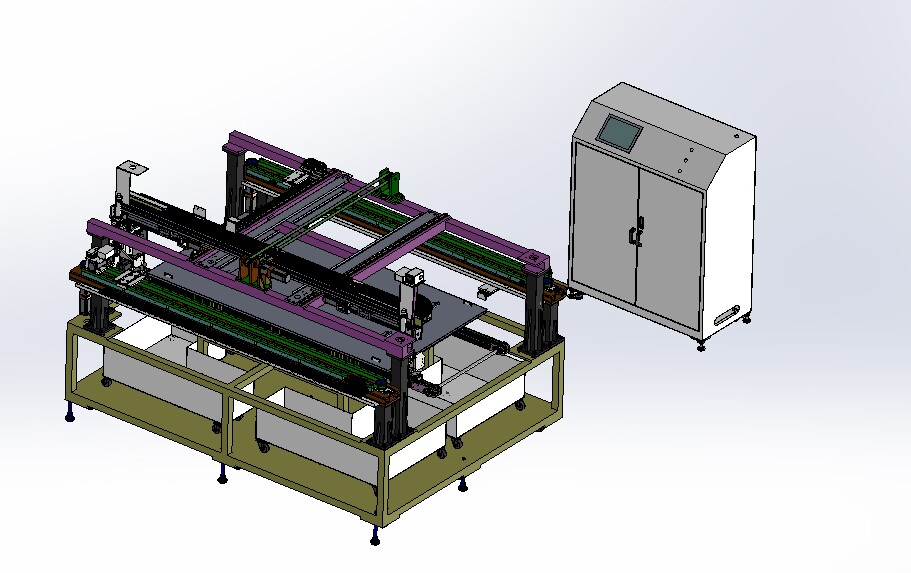

Equipment mechanical structure

1) The equipment adopts a complete set of gantry linear modules and servo control, which has the advantages of fast, sensitive and precise;

2) Main structure of the equipment: steel structure + sheet metal;

The equipment adopts a complete set of gantry linear modules and servo control, which has the advantages of fast, sensitive and accurate.

Overall dimensions: 2800*2000*1600

The equipment is made of frame-type 80*80 rectangular tubes. The equipment has a solid structure and consists of three parts: automatic feeding, automatic separation, and automatic output. The equipment uses PLC to control the overall system of the equipment; alarm function: three-color light indication + sound alarm + HMI prompt, which can easily and quickly find the problem points of the equipment; the beat is 30s. The appearance color of the equipment requires industrial gray.
