The EVA crosslinking degree tester includes: extraction device, fume hood, exhaust device and other accessories.
1.1 Function: The EVA-CCA crosslinking degree tester is used for testing the crosslinking of EVA in photovoltaic module encapsulation, crosslinking of polyethylene (PE), crosslinking of cross-linked polyethylene insulation wires and cables (XLPE), crosslinking of natural polymer ions and polymer crystallinity as well as other materials, detecting their flexibility, impact resistance, elasticity, optical transparency, low-temperature winding property, adhesiveness, environmental stress cracking resistance, weather resistance, chemical resistance, and heat sealing property.
Introduction to Crosslinking Degree Tester
2.1 Extraction device
Model: KM-HDM-2000A。
Specification: 250*260*210mm (DxWxH)。
Capacity: 2000 milliliters。
2.1.Heating device
Using high-temperature resistant alkali-free glass fiber as the insulating material, the nickel-chromium material resistance wire is sealed within the insulating layer and woven into a hemispherical internal heating heater.
Heating power: 600W
2.1.2 Control system
Controller: High-precision LED digital display P.I.D+SSR. Microcomputer integrated controller
Set precision: temperature ±0.1°C;
Indication accuracy: temperature ±0.2°C;
Resolution: Temperature ±0.1°C
2.1.3 For flask (it is appropriate to use a 500 mL flask for determination of 1-2 samples; a 1000 mL flask is suitable for determination of 2-3 samples; and a 2000 mL flask is more appropriate for determination of several samples but not more than 6).
Name: Five-necked round-bottom flask
Material: Quartz glass
specifications：2000ml/24*4mm
error：±1ml
High temperature resistance：600~800℃
High transparency
2.1.4reflux condenser (spherical)
Material: Quartz glass
specifications：H400mm*24.24mm

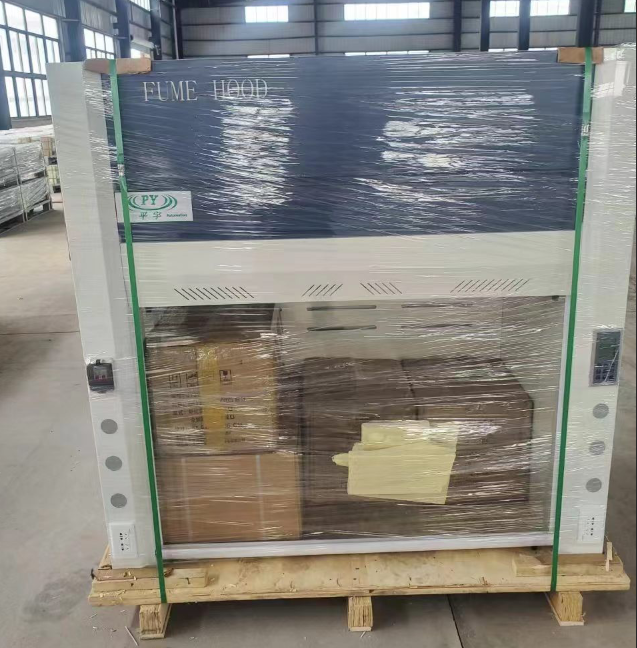

2.3 Fume hood (with water device)
All-steel structure
The countertop is 12mm thick imported veneered physicochemical board, double-sided bonding and pressing, and high-temperature shaping for 24 hours.
The frame is welded with domestically produced high-quality substantial plates, treated with pickling and phosphating, and the exterior is sprayed with high-pressure electrostatic epoxy resin powder coating in light gray.
Transparent window: Tempered glass, height can be adjusted to any position
Built-in lighting: Uses LED light source, with a power of 30W
Overall dimensions：850*1500*2350mm（DxWxH）
Sink size：200*100*150mm（DxWxH）
2.4 Exhaust device
2.4.1 Built-in exhaust fan, corrosion-proof, explosion-proof and high-temperature resistant
