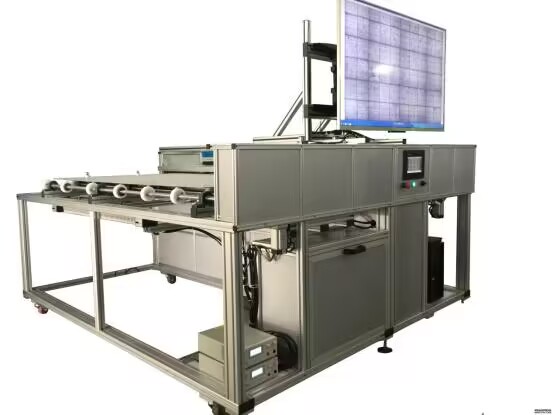

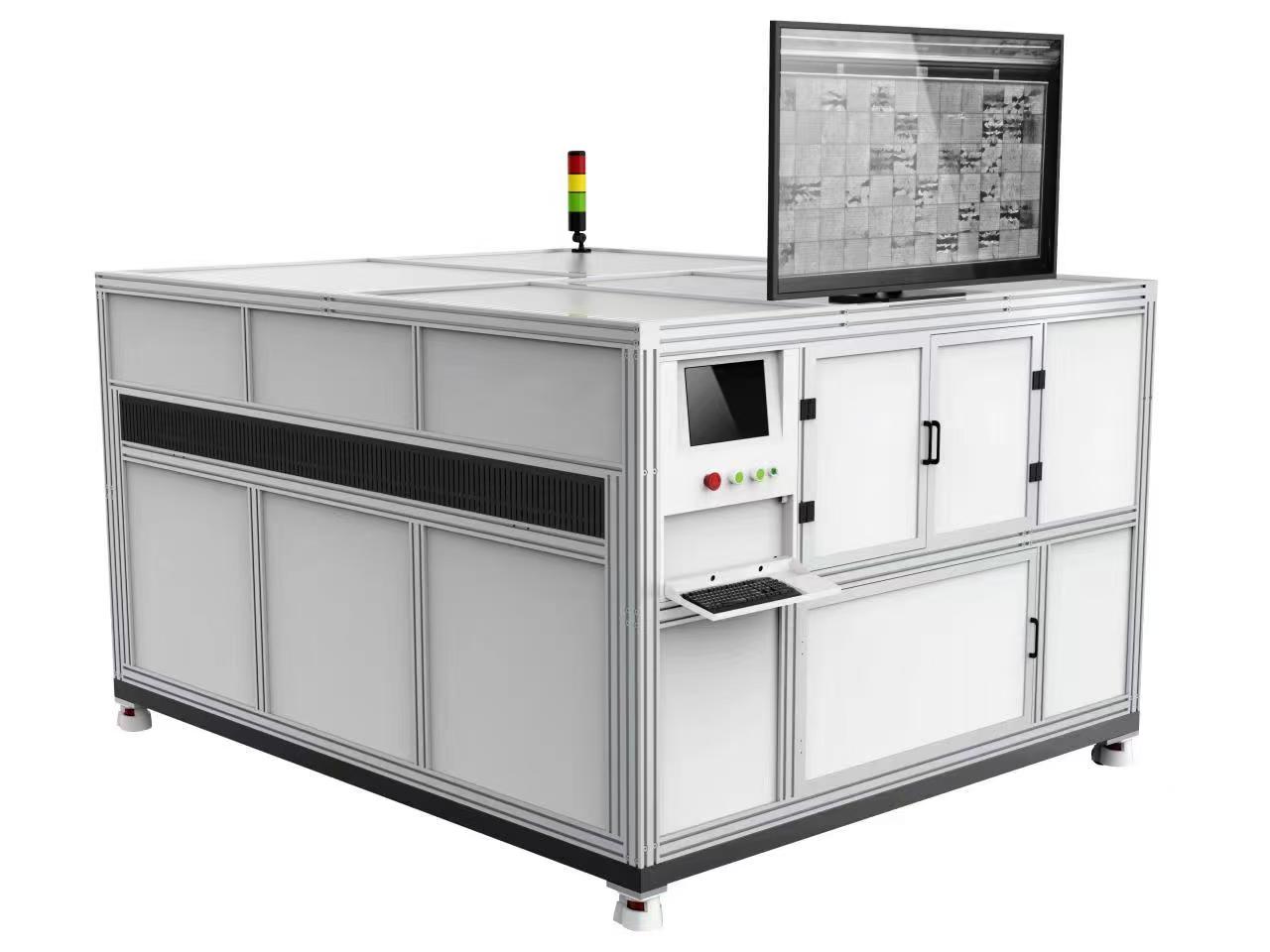

EL automatic detector photovoltaic cells components, by applying external constant current stabilized voltage supply to the battery components, using the electroluminescent technology of layer pressure before and after pressing and packaging after the completion of the photovoltaic cells components, semi-finished products and finished products for special imaging and imaging results show clearly to the computer display. Using customized software, images can be battery components in various defects of the human eye cannot be observed clearly displayed.
2、Detection defect type
1 、Battery material defect（Debris, hidden cracks, broken grids, contamination）
2 、Welding process defect（Virtual welding, off welding）
3 、Different grades mixed
3、parameter of apparatus
contour size of the unit(s)：Length 3000 x width 2300X height 1600mm.
4、Main technical indicators of equipment
project | content |
Detection module | Monocrystalline polycrystalline components before lamination |
Package specification | maximum size：L2400mm*W1400mm |
Shooting mode | Face down; Multiple camera shots face down； |
Component transfer mode | Lateral transmission（The long side of the component enters horizontally） |
detection time | <23s Speed adjustable |
Camera YOHA brand | |
Camera type | Laser custom industrial cameras |
camera resolution | The puzzle made 27.6 million 外观相机Appearance camera：2000* 12 万 |
Image acquisition time | 1~60s adjustable |
Load current/voltage | 20A/60V |
Drive current/voltage | 20A/60V |
control mode
| PLC Siemens touch screen: Wilenton |
Power-on mode | Automatic probe contact |
mode of operation | full-automatic（Feed and discharge, alignment positioning, power-on detection, image processing） |
