Applicable scope of the equipment:
1.Equipment Definition: Fully Automatic Gluing and Frame Assembly Machine；
2.Equipment Application Scope: Maximum Model Components: 2300mm×1200mm×(30 - 60)mm
Smallest model component: 1580mm×808mm×(30 - 60)mm
3. Border combination mode：The 90° corner connection of the aluminum alloy frame adopts the corner piece connection method.，The slot of the corner code is in interference fit with the aluminum alloy frame.（That is, the two ends of the short - side aluminum frame have been assembled with corner codes and have been riveted; the two ends of the long - side aluminum frame have been punched out with concave pits.），The component glass is facing down.。
4.Product Quality Requirements：
1.Component size defect | 1.1.long side(AD/BC) ±1mm. | |
1.2.short side(AB/CD)±1mm. | ||
1.3. diagonal difference|AC-BD| ≦2mm. | ||
2.Misalignment of the drain hole | dislocation≦1.0mm. | |
3.Gap after frame assembly | gap≦0.3mm. | |
4.Frame Assembly Rear Section Difference | step difference≦0.3mm. | |
5.Glue overflow on the glass surface | 5.1.There must be glue filled between the glass surface and the aluminum frame. | |
5.2.It is allowed that there is no overflow glue within the 2mm area from the inner side of the aluminum frame slot to the edge of the slot opening. | ||
6.Excessive glue on the backboard surface | The backplate surface has uniform glue overflow, and the glue overflow on the backplate surface is not curled up. The uniformity is measured based on the edge of the frame slot. The maximum width and the minimum width difference of the glue overflow strip is <2mm.， | |
Main Function Introduction一： | ||

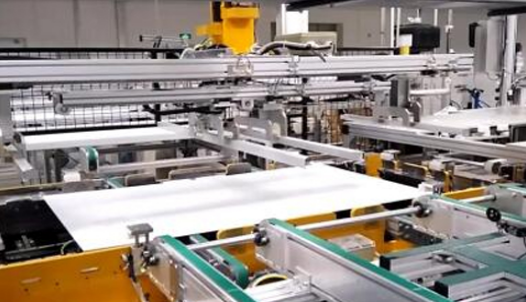

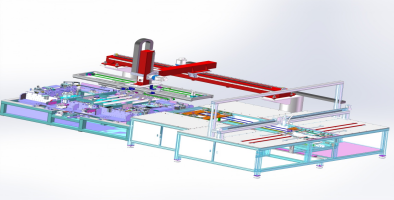

1 Place the border at the specified position, and the gluing system automatically senses and edge-seeks for gluing. 2 The border transplanting and feeding mechanism realizes the grabbing (finger cylinder) of the punched border to the specified position. 3 The components are conveyed to the top of the frame assembling machine through the conveyor line, then descend to the frame assembling work platform and are aligned. 4After the border is aligned, the servo mechanism acts to complete the framing function, the conveying platform rises to the conveying plane, and the components are transferred to the next station.。 | ||
Device Function：
1Main components: gluing platform, one American 55-gallon plunger glue pump, one American pressure regulating valve, one caching device, one Swiss glue gun..。
2.Applicable processes: Aluminum frame dimensions for solar cell modules range from 500 to 2500 mm; all brands of single-component silicone sealant; the conveying method involves front loading and rear unloading with a continuous feed roller fork for the frame; automatic identification of long and short frames; simultaneous application of sealant to both long and short frames; continuous and uninterrupted operation for both long and short frames.。
3.Glue line diameter: adjustable from 1 to 6 mm.。
4.Glue line diameter error: ≤10% (at any cross-section, maximum speed)
5One working cycle time: ≤35S (including loading and unloading time).。
6.Working mode: automatic identification of long and short, reciprocating shift fork。
