Specification Model: 3000×1700×920mm

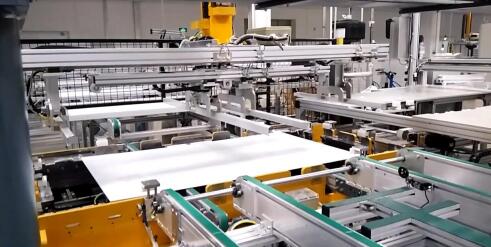

Automatic framing machine is a special equipment for rectangular assembly of aluminum alloy with corner code and willow joint. It is assembled by the cylinder, linear guide rail and steel structure, which can realize the extrusion positioning of the aluminum alloy frame after the lamination of the component is completed. The group frame and aluminum alloy frame are fixed on one device, which simplifies the working intensity of workers, saves time and improves the quality of products.

Suitable for the end faces of various profiles. Can be applied to screw and screw free aluminum alloy frame. The outline size of the frame is located within the design range by locking rack, arbitrarily adjusted and the precision can be fine-tuned by adjustable cylinder. Meet the requirements of different group frame sizes. The structure design of the whole machine is reasonable, the rigidity is high, and the adjustment can meet the requirements of different groups of frames.

Power supply: 220V 50HZ, air source: 0.6~0.8, the maximum frame size: 160×160×50(35)mm, the maximum frame size: 1100×2000×50(35)mm, the side accuracy: 1mm, the diagonal accuracy: 1.5㎜, the Angle: 0.6°
